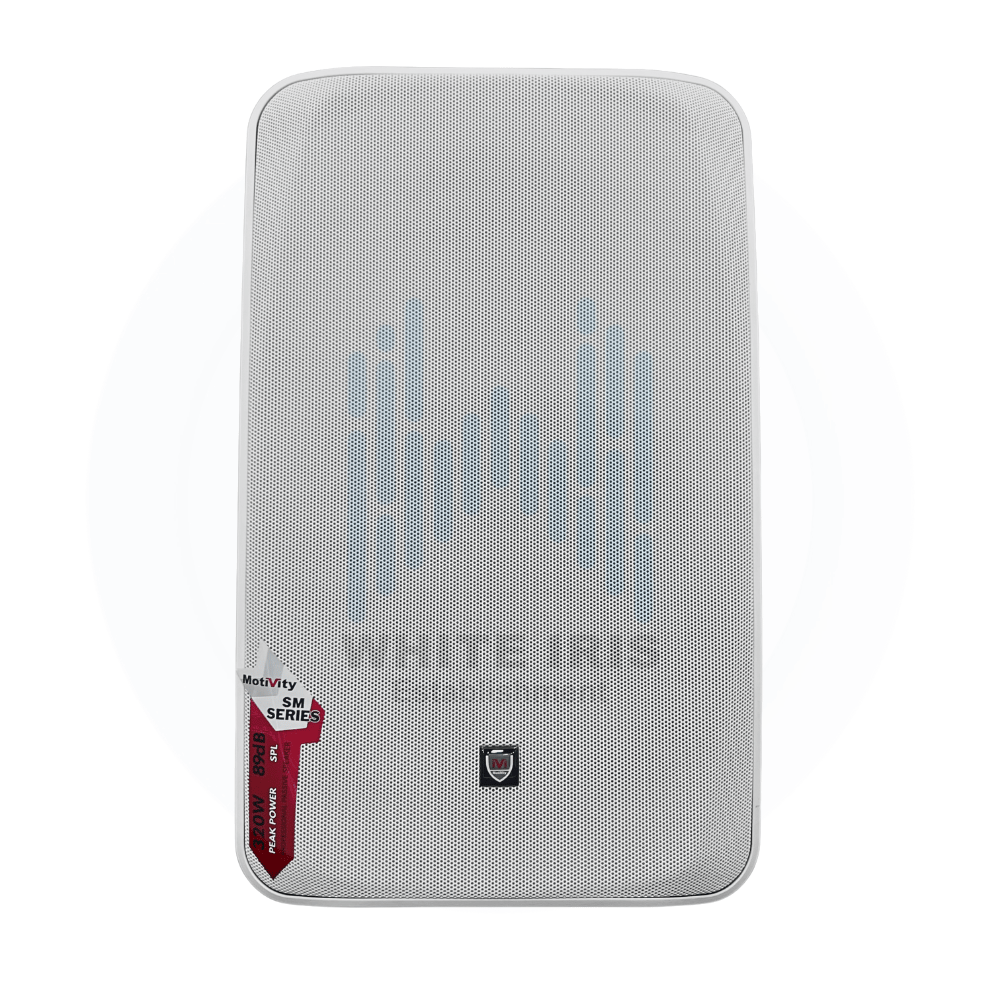

Model Passive SM-8T/SM-8TW
System Type 2-Way 8″ Passive Speaker Cabinet
Transducer Low 8″ Ferrite Woofer-1.2″ V.C 8Ω/80W
Transducer High 1.0” V.C,Neodymium Tweeter
Input Voltage 70V / 100V
Sensitivity (1w/1M) 89dB
Model Passive SM-8T/SM-8TW
System Type 2-Way 8″ Passive Speaker Cabinet
Transducer Low 8″ Ferrite Woofer-1.2″ V.C 8Ω/80W
Transducer High 1.0” V.C,Neodymium Tweeter
Input Voltage 70V / 100V
Sensitivity (1w/1M) 89dB
Enclosure Construction Trapezoidal shape/ Wall bracket capability / Injection-molded ABS with perforated steel grille.
Dimensions(H×W×D) 16.0”(406mm) x 9.8”(250mm) x 10.0”(251mm)
Net weight 6.4Kg / 14.1 Ibs
Transformer Selectable Power 10W / 20W / 40W / 80W
System Impedance 70V _ 500Ω / 250Ω / 125Ω / 62Ω_Bypass
100V _ 1000Ω / 500Ω / 250Ω / 125Ω_Bypass
Frequency Response 80Hz-20kHz (-10dB)
Connect Cable Conductor

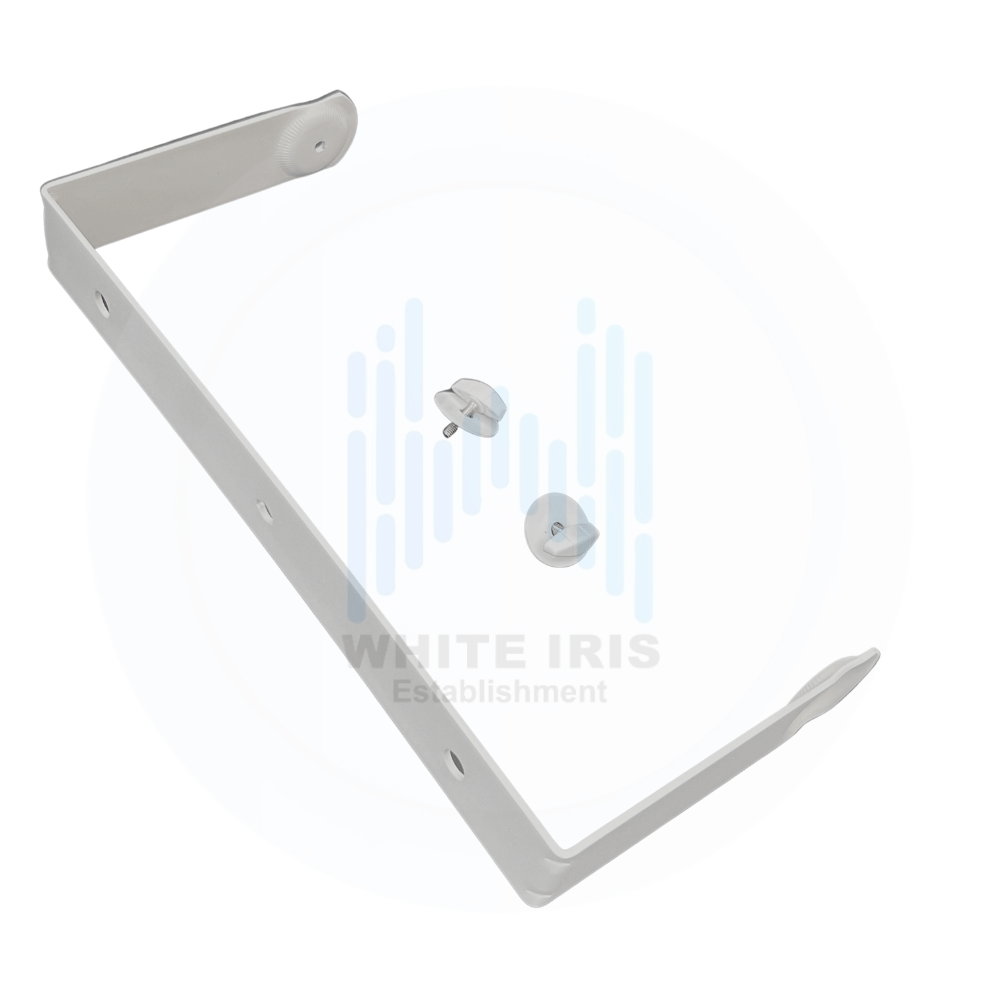

Mounting 2*M6 Points for Mounting ,/4*M5 Threaded Sockets in Back
